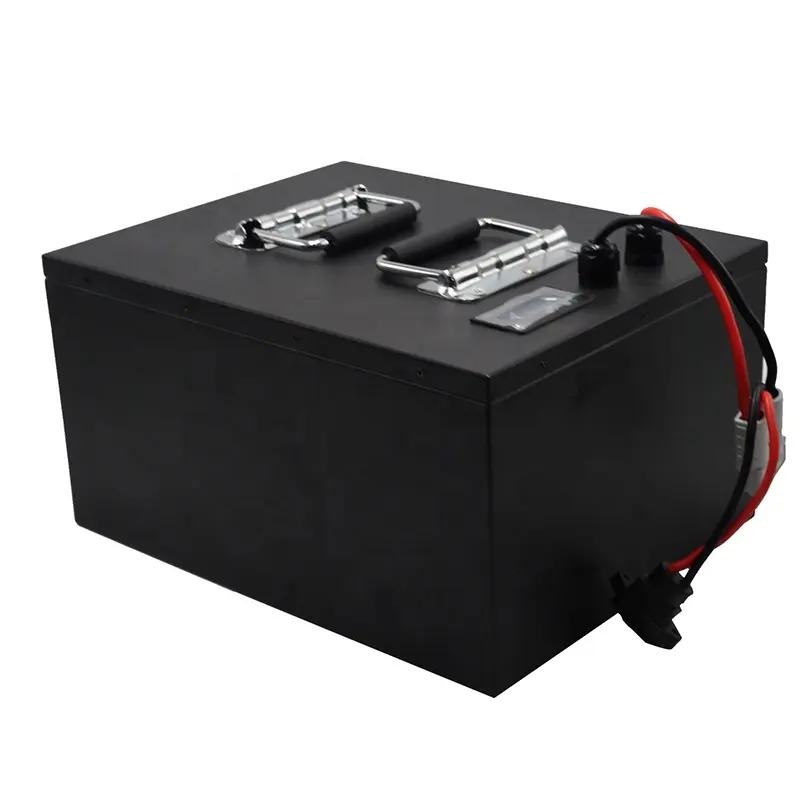

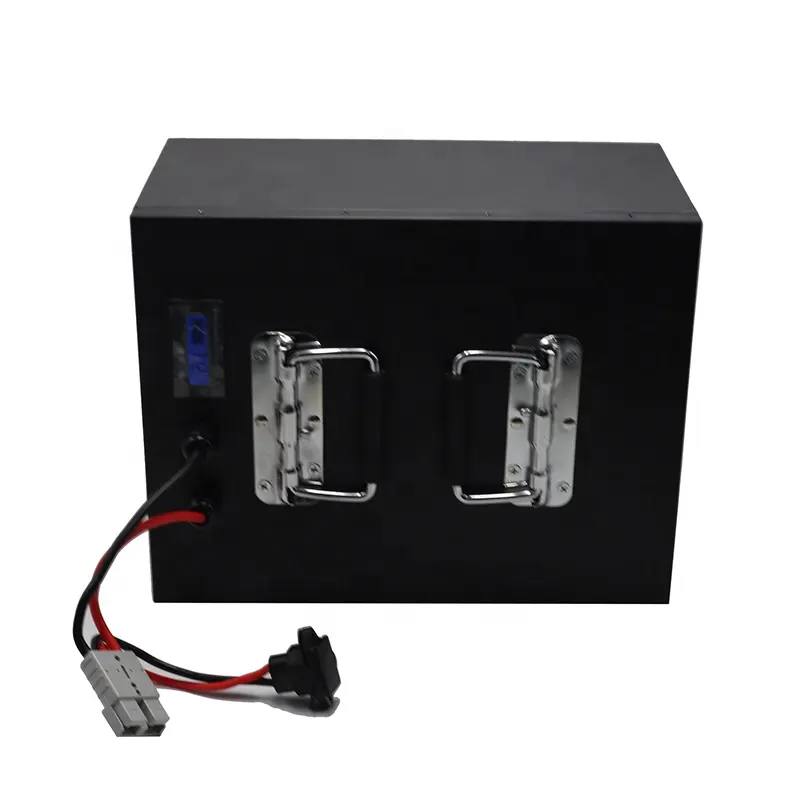

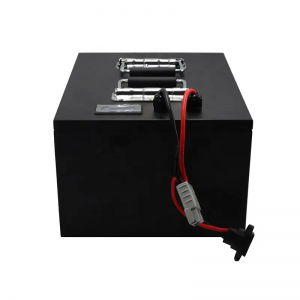

Προσαρμοσμένο πακέτο μπαταριών LiFePO4 72v 60ah Electric Vehicle Battery Lithium Ion Pack for EV Cars

2023-06-06 02:13

Προσδιορισμός

Μάρκα	ΟΛΑ ΣΕ ΕΝΑ
Μοντέλο	AIN7260
Εγγύηση	5 χρόνια
Ονομαστική τάση	76,8 V
Ονομαστική χωρητικότητα	[email protected]/customize
Ενέργεια	4416Wh
Εσωτερική αντίσταση	≤50mΩ
Κύκλος ζωής	4000 Cycles @ 0.2C Charging/Discharging ,Until 80% Capacity
Μόνη απαλλαγή	≤3,5% ανά μήνα σε 25 ℃
Μέγιστη τάση φόρτισης	87.6 V
Λειτουργία φόρτισης	At 0℃~45℃ temperature, charged to 87.6  V at a constant current of 0.2C, and then,changed continuously with constant voltage of 87.6 V until the current was not more than 0.02C
Φόρτιση ρεύματος	30Α
Μέγιστη. Ρεύμα φόρτισης	60Α
Εκφόρτιση ρεύματος	30Α
Max. discharge Continuous Current	60Α
Μέγιστο. Παλμικό ρεύμα	120A(<3S）
Εκφόρτιση τάσης διακοπής	60V
Θερμοκρασία φόρτισης	0 ℃ έως 45 ℃ (32 ℉ έως 113 ℉) @ 60 ± 25% σχετική υγρασία
Θερμοκρασία απαλλαγής	-20 ℃ έως 60 ℃ (-4 ℉ έως 140 ℉) @ 60 ± 25% σχετική υγρασία
Θερμοκρασία αποθήκευσης	0 ℃ έως 45 ℃ (32 ℉ έως 113 ℉) @ 60 ± 25% σχετική υγρασία
Αντοχή στη σκόνη του νερού	IP55
Κελί & Μορφή	LFP  60AH 24S1P/customize
Θήκη	Metal Case
Διάσταση (L * W * H * TH)	προσαρμογή
Βάρος	50kg
Τερματικό	M6 or Anderson or another bolt screw
Peak discharge current BMS	60Α
High temp port. Low temp port.	over charge port. over discharge port.
Μέθοδος φόρτισης	CC / βιογραφικό σημείωμα
Terminal Type	M6 or Anderson or another bolt screw/customize
Πιστοποιητικό	CE, RoHS ,MSDS and UN38.3 certification
applications	Golf Carts, Electric Forklifts,Slow Speed Car; AGV,Electric Motorcycle; Sightseeing car;RV ,Tricycle, electric vehicles, Electric Wheelchairs, Electric Power Systems, Uninterruptible Power Supplies, Solar Energy Storage Systems,BOATS

Υπενθύμιση

1.Support customization, according to the specifications required by customers: voltage, capacity, power, working current, size,weight.

2. Factory wholesale price, our factory has a price advantage. Cells of the same level are the cheapest, and you can choose the corresponding cells to make a battery pack according to your requirements.

3.Before placing Order please contact customer service to communicate the required specifications to confirm the price.

Εφαρμογή

Το εργοστάσιό μας

Why to choose us?

* We have our own factory and company, which belong to an absolute integration of industry and trade.
* A large number of batteries are in stock.
* Have very good product resources.
* Good product quality and favorable price.
* The product is 100% original and brand new.
* 100% on time delivery. Fast delivery.(including battery pack <7 days).
* Long warranty 2-5 years.
* provide sample 2-7 days.
* Professional after-sales service.
* We have a complete industrial chain and professional engineers can make battery packs that satisfy you as quickly as
possible.
If you want to know more about the information, please free feel to contact me. Thanks!

Συσκευασία και αποστολή

Συσκευασία

1). Carton Size: customized or based on actual weight and volume, best quality.

2). 5-layers exporting carton or customized outer packaging for paper bags;

Αποστολή

1). By Express (3-30working days),there are express shipping or economic shipping,suitable for small quantity.

2). By Train(25-28days),for EU Country,including customs clearance, all the import tax fees and UPS delivery to the door.

3). By Sea (15-30 days), it suitable for regular mass production.

We cooperate with excellent international freight forwarding companies to provide cheap and efficient logistics services. If you have any shipping issues, please feel free to contact me.



Συχνές ερωτήσεις

Ε: Πώς πρέπει να πληρώσω; Ποιους τρόπους πληρωμής αποδέχεστε;
A: T/T, PayPal, Western Union.

Ε: Είναι παραγγελία δείγματος αποδεκτή;
Α: Ναι, για τις περισσότερες μπαταρίες, οι παραγγελίες δειγμάτων για ποιότητα δοκιμής είναι λογικές και αποδεκτές.

Q: Is your battery quality approved?
A: Yes, we guarantee that all cells are 100% original from Brand. And we will have full inspection of each cells and grouping them before assembling into battery packs. And all finished battery packs will be under a full inspection
before shipment.

Q: How can you prove that your cells are 100% original?
A: We can show you the original pack list and other related documents.

Q: what is your lead time if I placed an order?
A: For all products in stock, our lead time is within 2 working days after payment received. For these that we don't stock for the moment such as customized battery packs, the lead time is around 7-10 days.

Q: What is your warranty?
A: These situations not provide return nor refund:
1.After the assembly or assembly process happen any problem, such as the protection board connected to the wrong wire burned lead to battery damage, charger failure, the assembly error or unbalanced assembly, etc.
2. Για ζημιές που προκαλούνται, όπως διόγκωση/συγκόλληση μπαταρίας, μπαταρία χωρίς BMS προστασίας που προκαλείται από τη φόρτιση.
